AndroidアプリとWebアプリのIF設計

【最終更新日】2023-04-07

AndroidアプリとFlask Webアプリとのインターフェイス設計とデータベーステーブル定義は下記のとおりです

1.Webアプリケーションインターフェイス仕様

1-1.登録時 I/F

HTTPメソッド: POST
URLパス: /helthcare/register
Content-type: application/json
文字コード: UTF-8
登録データ形式: JSON文字列
下記【新規登録時のJSONデータと登録先テーブル】参照
レスポンスデータ: JSON文字列(UTF-8)

1-2.更新時 I/F

HTTPメソッド: POST
URLパス: /helthcare/update
Content-type: application/json
文字コード: UTF-8
データ形式: JSON文字列 ※更新箇所のデーブル分のみ
下記【更新時のJSONデータ用テンプレートと更新用JSONデータ例】参照
レスポンスデータ: JSON文字列(UTF-8)

1-3.テータ取得 I/F

HTTPメソッド: GET
URLパス: /helthcare/getcurrentdata
リクエストパラメータ: emailAddress, measurementDay
レスポンスデータ: JSON文字列(UTF-8)

1-1.リクエスト・レスポンス例

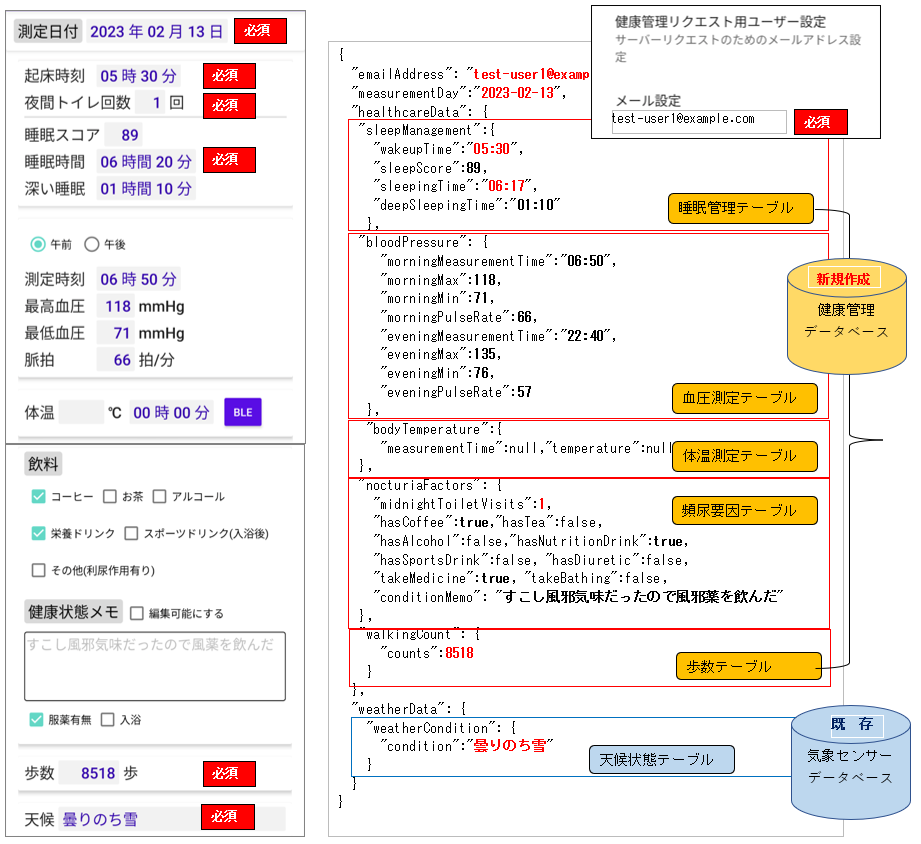

(1)登録時

リクエストデータ(JSON)

{
  "emailAddress": "user1@examples.com",
  "measurementDay":"2023-02-13",
  "healthcareData":{
    "sleepManagement":{
      "wakeupTime":"05:30",
      "sleepScore":89,
      "sleepingTime":"06:17",
      "deepSleepingTime":"01:10"
    },
    "bloodPressure":{
      "morningMeasurementTime":"06:50",
      "morningMax":118,
      "morningMin":71,
      "morningPulseRate":66,
      "eveningMeasurementTime":"22:40",
      "eveningMax":135,
      "eveningMin":76,
      "eveningPulseRate":57
    },
    "bodyTemperature":{
      "measurementTime":null,"temperature":null
    },
    "nocturiaFactors":{
      "midnightToiletVisits":1,
      "hasCoffee":true,
      "hasTea":false,
      "hasAlcohol":false,
      "hasNutritionDrink":true,
      "hasSportsDrink":false,
      "hasDiuretic":false,
      "takeMedicine":false,
      "takeBathing":false,
      "conditionMemo":"風邪気味で風邪薬を飲んだ"
    },
    "walkingCount":{
      "counts":8518
    }
  },
  "weatherData": {
    "weatherCondition":{
      "condition":"曇りのち雪"
    }
  }
}

レスポンスOK(JSON)

{
  "data": {
    "emailAddress": "user1@examples.com",
    "measurementDay": "2023-02-13"
  },
  "status": {
    "code": 0,
    "message": "OK"
  }
}

レスポンスNG(JSON)

{
  "status": {
    "code": 400,
    "message": "461,User is not found."
  }
}

(2)更新時

リクエストデータ(JSON)

{
  "emailAddress": "user1@examples.com",
  "measurementDay":"2023-02-13",
  "healthcareData":{
    "sleepManagement":{
      "wakeupTime":"05:30",
      "sleepScore":91,
      "sleepingTime":"06:30",
      "deepSleepingTime":"00:40"
    }
  },
  "weatherData": {
    "weatherCondition":{
      "condition":"雪"
    }
  }
}

レスポンスOK(JSON)

{
  "data": {
    "emailAddress": "user1@examples.com",
    "measurementDay": "2023-02-13"
  },
  "status": {
    "code": 0,
    "message": "OK"
  }
}

レスポンスNG(JSON)

{
  "status": {
    "code": 400,
    "message": "461,User is not found."
  }
}

(3)データ取得時

リクエストパラメータ: /helthcare/getcurrentdata?emailAddress=user1@examples.com&measurementDay=2023-02-13

レスポンスOK(JSON)

{
  "data": {
    "emailAddress": "user1@examples.com",
    "healthcareData": {
      "bloodPressure": {
        "eveningMax": 124,
        "eveningMeasurementTime": "22:20",
        "eveningMin": 72,
        "eveningPulseRate": 59,
        "morningMax": 112,
        "morningMeasurementTime": "06:45",
        "morningMin": 67,
        "morningPulseRate": 65
      },
      "bodyTemperature": {
        "measurementTime": null,
        "temperature": null
      },
      "nocturiaFactors": {
        "conditionMemo": null,
        "hasAlcohol": false,
        "hasCoffee": true,
        "hasDiuretic": true,
        "hasNutritionDrink": false,
        "hasSportsDrink": false,
        "hasTea": false,
        "midnightToiletVisits": 4,
        "takeBathing": false,
        "takeMedicine": true
      },
      "sleepManagement": {
        "deepSleepingTime": "01:10",
        "sleepScore": 78,
        "sleepingTime": "06:00",
        "wakeupTime": "05:30"
      },
      "walkingCount": {
        "counts": 8576
      }
    },
    "measurementDay": "2023-02-13",
    "weatherData": {
      "weatherCondition": {
        "condition": "曇りのち雪"
      }
    }
  },
  "status": {
    "code": 0,
    "message": "OK"
  }
}

レスポンスNG(JSON)

{
  "status": {
    "code": 404,
    "message": "Data is not found."
  }
}

2. テーブル設計

2-1-1.気象センサーデータベース定義
(src/docker/compose/postgresql/sensors_db/initdb/10_create_sensors.sql)

CREATE ROLE developer WITH LOGIN PASSWORD 'dev%5588';
--install pgcrypto that is required superuser.
ALTER ROLE developer WITH SUPERUSER;
CREATE DATABASE sensors_pgdb WITH OWNER=developer ENCODING='UTF-8'
 LC_COLLATE='ja_JP.UTF-8' LC_CTYPE='ja_JP.UTF-8' TEMPLATE=template0;
GRANT ALL PRIVILEGES ON DATABASE sensors_pgdb TO developer;

2-1-2.テーブル定義 (src/data/sql/weather/21_createtable_weather_condition.sql) ※抜粋

CREATE TABLE IF NOT EXISTS weather.weather_condition(
   measurement_day date NOT NULL,
   condition VARCHAR(60) NOT NULL,
   CONSTRAINT pk_weather_condition PRIMARY KEY (measurement_day)
);

2-2-1.健康管理データベース定義 (src/data/sql/health/10_createdb.sql)

CREATE DATABASE healthcare_db WITH OWNER=developer ENCODING='UTF-8'
 LC_COLLATE='ja_JP.UTF-8' LC_CTYPE='ja_JP.UTF-8' TEMPLATE=template0;
GRANT ALL PRIVILEGES ON DATABASE healthcare_db TO developer;

2-2-2.テーブル定義 (src/data/sql/health/11_createtable.sql) ※抜粋

-- スキーマ名(体健康)
CREATE SCHEMA IF NOT EXISTS bodyhealth;

-- ユーザーテーブル
CREATE TABLE IF NOT EXISTS bodyhealth.person(
   id smallint NOT NULL,
   email varchar(50) NOT NULL,
   name varchar(24) NOT NULL,
   CONSTRAINT pk_person PRIMARY KEY (id)
);
CREATE UNIQUE INDEX idx_person_email ON bodyhealth.person (email);

-- 睡眠管理テーブル
CREATE TABLE IF NOT EXISTS bodyhealth.sleep_management(
  pid smallint NOT NULL,
  measurement_day date NOT NULL,
  wakeup_time time without time zone NOT NULL,
  sleep_score smallint,
  sleeping_time time without time zone NOT NULL,
  deep_sleeping_time time without time zone
);

-- 血圧管理テーブル
CREATE TABLE IF NOT EXISTS bodyhealth.blood_pressure(
  pid smallint NOT NULL,
  measurement_day date NOT NULL,
  morning_measurement_time time without time zone,
  morning_max smallint,
  morning_min smallint,
  morning_pulse_rate smallint,
  evening_measurement_time time without time zone,
  evening_max smallint,
  evening_min smallint,
  evening_pulse_rate smallint
);

-- 体温測定テーブル: 任意
CREATE TABLE IF NOT EXISTS bodyhealth.body_temperature(
  pid smallint NOT NULL,
  measurement_day date NOT NULL,
  measurement_time time without time zone,
  temperature real
);

-- 歩数テーブル
CREATE TABLE IF NOT EXISTS bodyhealth.walking_count(
  pid smallint NOT NULL,
  measurement_day date NOT NULL,
  counts smallint NOT NULL
);

-- 夜中トイレ回数要因テーブル
CREATE TABLE IF NOT EXISTS bodyhealth.nocturia_factors(
  pid smallint NOT NULL,
  measurement_day date NOT NULL,
  midnight_toilet_visits smallint NOT NULL,
  has_coffee boolean,
  has_tea boolean,
  has_alcohol boolean,
  has_nutrition_drink boolean,
  has_sports_drink boolean,
  has_diuretic boolean,
  take_medicine boolean,
  take_bathing boolean,
  condition_memo varchar(255)
);
