Androidアプリで更新用JSONを生成


【最終更新日】2023-04-15

Androidアプリで変更のあった項目のテーブル単位の更新用JSON文字列を作成する方法について解説します。

Javaで変更のあったテーブル単位の更新用JSONデータを作ることはかなり大変です。 そこで今回は下記のようなテンプレートを定義し、変更のあったテーブル単位のJSONをテンプレートのフォーマット文字に埋め込む方法を採用しました。

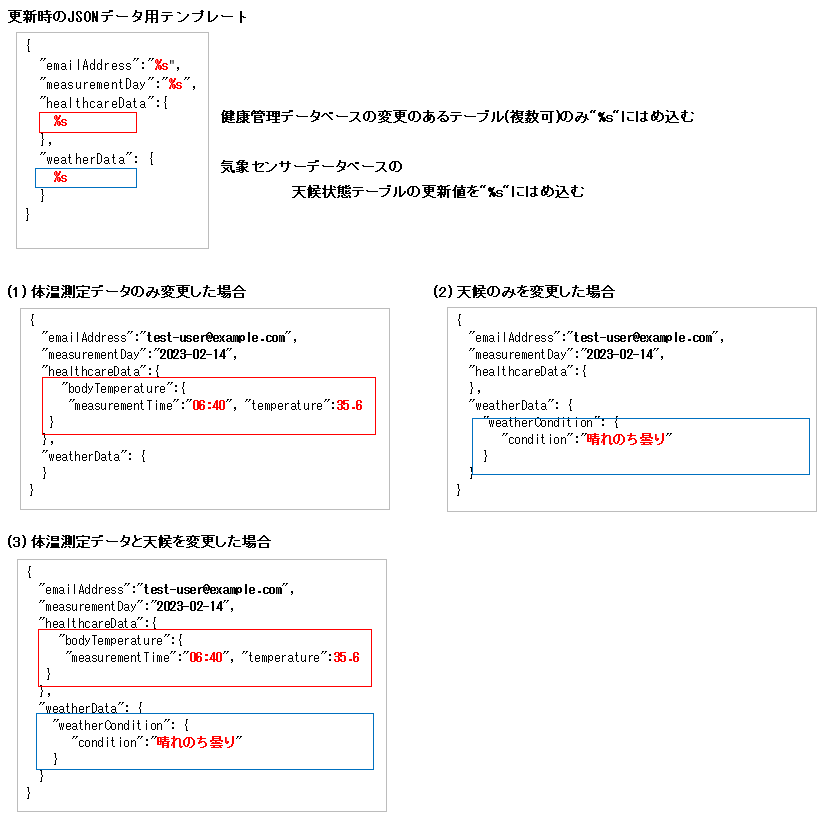

【更新データ用JSON作成用テンプレートとテーブル単位の部分更新イメージ】
1.開発・テスト用のプロジェクト
(1)このページの説明で使われているJavaプロジェクトのクラス構成
java-health-care-example/
├── com
│   └── examples
│       └── android
│           └── healthcare
│               ├── Constants.java               (*) 入出力先定義
│               ├── OutputUpdateJson.java        (*) 更新用JSON出力メインクラス
│               ├── constants
│               │   ├── JsonTemplate.java        (*) テンプレートとテーブルごとのJSON断片を出力するクラス
│               ├── data                         (*) JSON出力を構成するデータクラス
│               │   ├── BloodPressure.java
│               │   ├── BodyTemperature.java
│               │   ├── HealthcareData.java
│               │   ├── NocturiaFactors.java
│               │   ├── RegisterData.java
│               │   ├── SleepManagement.java
│               │   ├── WalkingCount.java
│               │   ├── WeatherCondition.java
│               │   └── WeatherData.java
│               └── util
│                   └── FileUtil.java            (*) ファイル入出力クラス
└── lib
    └── gson-2.9.0.jar    (*) Mavenリポジトリからダウンロードしlibディレクトリに配置
Javaプロジェクトのソースコードはこちら
https://github.com/pipito-yukio/personal_healthcare/tree/main/src/java-health-care-example
(2)このページの説明で使われているFlaskプロジェクトのpythonファイル
Healthcare/
└── healthcare
    ├── __init__.py
    └── views
        ├── __init__.py
        └── app_main.py (*) アプリメイン (リクエスト処理)
Flaskアプリのソースコードはこちら
https://github.com/pipito-yukio/personal_healthcare/tree/main/src/webapp
2.Javaで変更のあった項目のテーブル単位の更新用JSON文字列を生成する
(1)テンプレートクラス
package com.examples.android.healthcare.constants;

import com.examples.android.healthcare.data.HealthcareData;

public class JsonTemplate {
    /**
     * 更新用JSONメインテンプレート
     * [必須項目] 更新時の主キー
     *   emailAddress, measurementDay
     * [任意項目]
     *   健康管理データ (healthcareData)
     *     [sleepManagement|bloodPressure| bodyTemperature | nocturiaFactors| walkingCount]
     *   天候状態 (weatherCondition)
     */
    private static final String TEMPL_MAIN = "{\"emailAddress\":\"%s\",\"measurementDay\":\"%s\"," +
            "\"healthcareData\":{%s},\"weatherData\":{%s}}";
    // 1.健康管理データ
    // 1-1.睡眠管理
    private static final String HEALTH_SM = "\"sleepManagement\":%s";
    // 1-2.血圧測定
    private static final String HEALTH_BP = "\"bloodPressure\":%s";
    // 1-3.体温測定
    private static final String HEALTH_BT = "\"bodyTemperature\":%s";
    // 1-4.夜間頻尿要因
    private static final String HEALTH_NF = "\"nocturiaFactors\":%s";
    // 1-5.歩数
    private static final String HEALTH_WC = "\"walkingCount\":%s";
    // 2.天候状態
    private static final String WEATHER = "\"weatherCondition\": %s";

    /**
     * 更新用JSON文字列を生成する。
     * <p>健康管理データまたは天候テータのいずれかは必要</p>
     * @param eailAddress メールアドレス(必須)
     * @param messurementDay 測定日付(必須)
     * @param healthcareData 健康管理データ(任意): nullなら空文字設定
     * @param weatherData 天候データ(任意): nullなら空文字設定
     * @return 更新用JSON文字列
     */
    public static String createUpdateJson(String eailAddress, String messurementDay,
                                     String healthcareData, String weatherData) {
        String healthValue = (healthcareData != null) ? healthcareData : "" ;
        String weatherValue = (weatherData != null) ? weatherData : "";
        return String.format(TEMPL_MAIN, eailAddress, messurementDay, healthValue, weatherValue);
    }

    /**
     * 更新用の睡眠管理JSON文字列を生成する。
     * <p> "sleepManagement" プロパティで括った睡眠管理JSON文字列を生成</p>
     * @param sleepManJson 睡眠管理データJSON文字列 (必須)
     * @return 更新用の睡眠管理JSON文字列
     */
    public static String getJsonWithSleepManagement(String sleepManJson) {
        return String.format(HEALTH_SM, sleepManJson);
    }

    /**
     * 更新用の血圧測定JSON文字列を生成する。
     * <p> "bloodPressure" プロパティで括った血圧測定JSON文字列を生成</p>
     * @param bloodPressJson 血圧測定データJSON文字列 (必須)
     * @return 更新用の血圧測定JSON文字列
     */
    public static String getJsonWithBloodPressure(String bloodPressJson) {
        return String.format(HEALTH_BP, bloodPressJson);
    }

    /**
     * 更新用の体温測定JSON文字列を生成する。
     * <p> "bodyTemperature" プロパティで括った体温測定JSON文字列を生成</p>
     * @param bodyTemperJson 体温測定データJSON文字列 (必須)
     * @return 更新用の体温測定JSON文字列
     */
    public static String getJsonWithBodyTemperature(String bodyTemperJson) {
        return String.format(HEALTH_BT, bodyTemperJson);
    }

    /**
     * 更新用の夜間頻尿要因JSON文字列を生成する。
     * <p> "nocturiaFactors" プロパティで括った夜間頻尿要因JSON文字列を生成</p>
     * @param noctFactorsJson 夜間頻尿要因データJSON文字列 (必須)
     * @return 更新用の夜間頻尿要因JSON文字列
     */
    public static String getJsonWithNocturiaFactors(String noctFactorsJson) {
        return String.format(HEALTH_NF, noctFactorsJson);
    }

    /**
     * 更新用の歩数JSON文字列を生成する。
     * <p> "walkingCounte" プロパティで括った歩数JSON文字列を生成</p>
     * @param walkingCntJson 歩数データJSON文字列 (必須)
     * @return 更新用の歩数JSON文字列
     */
    public static String getJsonWithWalkingCount(String walkingCntJson) {
        return String.format(HEALTH_WC, walkingCntJson);
    }

    /**
     * 更新用の天候状態JSON文字列を生成する。
     * <p> "weatherCondition" プロパティで括った天候状態JSON文字列を生成</p>
     * @param weatherCondJson 天候データJSON文字列 (必須)
     * @return 更新用の天候状態JSON文字列
     */
    public static String getJsonWithWeatherCondition(String weatherCondJson) {
        return String.format(WEATHER, weatherCondJson);
    }

}
(2) メインクラスで更新用JSONを出力する
import com.examples.android.healthcare.constants.JsonTemplate;
import com.examples.android.healthcare.data.*;
import com.examples.android.healthcare.util.FileUtil;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;

import java.io.IOException;
import java.nio.file.Paths;
import java.util.ArrayList;

/**
 * 健康管理Flaskアプリへの更新用用データの出力テスト
 * 更新データは変更の有るデータのみを出力対象とするため更新用テンプレートに更新データJSON文字列追加するよう実装
 * 出力したJSONファイルを用いてcurlコマンドで健康管理Flaskアプリに更新リクエストを実行する
 * (使用例) cd ~/Documents/java/output
 *  $ curl -X POST -H "Content-type: application/json" -d @update_data.json "dell-t7500.local:5000/healthcare/update"
 */
public class OutputUpdateJson {
    static final String JSON_NAME = "update_data.json";

    public static <List> void main(String[] args) {
        // 出力ファイル名
        // ~/Documents/java/output/update_data.json
        String saveFile = Paths.get(Constants.OUTPUT_DATA_PATH, JSON_NAME).toString();
        // GSONは部分的にJson文字列を生成するのに使用する
        Gson gson = new GsonBuilder().serializeNulls().create();

        // Androidアプリで使用する前提で実装
        String jsonContent;
        String JsonWithProperty;
        // 健康管理データ
        java.util.List<String> healthList = new ArrayList<String>();
        // 1.睡眠管理データ: sleepScoreを変更
        SleepManagement sleepManagement = new SleepManagement(
                "05:30", 70, "06:40", "0:50"
        );
        jsonContent = gson.toJson(sleepManagement);
        JsonWithProperty = JsonTemplate.getJsonWithSleepManagement(jsonContent);
        healthList.add(JsonWithProperty);
        // 2.血圧測定データ: 変更なし
        // 3.体温測定データ: 変更なし
        // 4.夜間頻尿要因: 変更なし
        // 5.歩数: 変更
        WalkingCount walkingCount = new WalkingCount(8300);
        jsonContent = gson.toJson(walkingCount);
        JsonWithProperty = JsonTemplate.getJsonWithWalkingCount(jsonContent);
        healthList.add(JsonWithProperty);
        // 健康管理データ
        String healthcareDataJson = String.join(",", healthList);
        System.out.println(healthcareDataJson);

        // 天気情報
        WeatherCondition weatherCondition = new WeatherCondition("晴れ時々曇り");
        jsonContent = gson.toJson(weatherCondition);
        String weatherDataJson = JsonTemplate.getJsonWithWeatherCondition(jsonContent);
        System.out.println(weatherDataJson);

        // メールアドレスと測定日が各テーブルの主キー
        String emailAddress = "user1@examples.com";
        String measurementDay = "2023-03-10";
        // 更新用リクエスト用のJSON文字列をテンプレートから生成
        String updateJson = JsonTemplate.createUpdateJson(emailAddress, measurementDay,
                healthcareDataJson, weatherDataJson);
        try {
            FileUtil.saveText(saveFile, updateJson);
        } catch (IOException e) {
            System.out.println(e);
        }
    }
}
(3) 出力された更新用JSONファイル (update_data.json) ※整形しています(実際は1行です)
{
  "emailAddress":"user1@examples.com",
  "measurementDay":"2023-03-10",
  "healthcareData":{
    "sleepManagement":{
      "wakeupTime":"05:30",
       "sleepScore":70,
       "sleepingTime":"06:40",
       "deepSleepingTime":"0:50"
    },
    "walkingCount":{
      "counts":8300
    }
  },
  "weatherData":{
    "weatherCondition": {
      "condition":"晴れ時々曇り"
    }
  }
}
【参考】Androidアプリで実際に更新用JSONを生成するメソッド
/**
 * 変更のあった入力ウィジットのグループのデータを含む更新リクエスト用JSON文字列を生成する
 * @return 更新リクエスト用JSON文字列, 健康管理データと天候データのいずれも変更なしの場合はnull
 */
private String generateJsonTextForUpdate() {
    // メールアドレス(必須)
    String emailAddress = getUserEmailWithThisSettings();
    // 測定日付(必須)
    String iso8601DateValue = toStringOfTextViewBySelfTag(mInpMeasurementDate);
    // JSON整形なし
    Gson gson = new GsonBuilder().serializeNulls().create();

    // 変更グループリスト
    List<String> updateList = new ArrayList<>();
    // 健康管理
    HealthcareData beforeData = mRegisterDataForUpdate.getHealthcareData();
    // 睡眠管理
    SleepManagement beforeSleepMan = beforeData.getSleepManagement();
    if (hasTrueInUpdateCheckMap(UPD_KEY_SLEEP_MAN)
            || hasUpdateOfSleepManagement(beforeSleepMan)) {
        SleepManagement sleepManagement = newSleepManagement();
        String jsonContent = gson.toJson(sleepManagement);
        String JsonWithProperty = JsonTemplate.getJsonWithSleepManagement(jsonContent);
        updateList.add(JsonWithProperty);
    }
    // 血圧測定
    BloodPressure beforeBloodPress = beforeData.getBloodPressure();
    if (hasTrueInUpdateCheckMap(UPD_KEY_BLOOD_PRESS)
            || hasUpdateOfBloodPressure(beforeBloodPress)) {
        BloodPressure bloodPressure = newBloodPressure();
        String jsonContent = gson.toJson(bloodPressure);
        String JsonWithProperty = JsonTemplate.getJsonWithBloodPressure(jsonContent);
        updateList.add(JsonWithProperty);
    }
    // 体温
    if (hasTrueInUpdateCheckMap(UPD_KEY_BODY_TEMPER)) {
        BodyTemperature bodyTemperature = newBodyTemperature();
        String jsonContent = gson.toJson(bodyTemperature);
        String JsonWithProperty = JsonTemplate.getJsonWithBodyTemperature(jsonContent);
        updateList.add(JsonWithProperty);
    }
    // 夜間頻尿要因
    NocturiaFactors beforeFactors = beforeData.getNocturiaFactors();
    if (hasUpdateConditionMemo(beforeFactors.getConditionMemo()) /* 健康状態メモのみ単独判定 */
            || hasTrueInUpdateCheckMap(UPD_KEY_NOCT_FACT)) {
        NocturiaFactors nocturiaFactors = newNocturiaFactors();
        String jsonContent = gson.toJson(nocturiaFactors);
        String JsonWithProperty = JsonTemplate.getJsonWithNocturiaFactors(jsonContent);
        updateList.add(JsonWithProperty);
    }
    // 歩数
    WalkingCount beforeWalkingCount = beforeData.getWalkingCount();
    if (hasUpdateWalkingCount(beforeWalkingCount)) {
        WalkingCount walking = new WalkingCount(toIntegerOfNumberView(mInpWalkingCount));
        String jsonContent = gson.toJson(walking);
        String JsonWithProperty = JsonTemplate.getJsonWithWalkingCount(jsonContent);
        updateList.add(JsonWithProperty);
    }
    // 健康管理データ部分JSON
    String healthcareDataJson;
    if (!updateList.isEmpty()) {
        healthcareDataJson= String.join(",", updateList);
    } else {
        healthcareDataJson = null;
    }

    // 天候データ部分JSON
    String weatherDataJson;
    WeatherCondition wc = mRegisterDataForUpdate.getWeatherData().getWeatherCondition();
    if (hasUpdateWeather(wc)) {
        WeatherCondition weather = new WeatherCondition(toStringOfTextView(mInpWeatherCond));
        String jsonContent = gson.toJson(weather);
        weatherDataJson = JsonTemplate.getJsonWithWeatherCondition(jsonContent);
    } else {
        // 変更がない場合は空文字
        weatherDataJson = null;
    }
    // 健康管理データと天候データのいずれも変更がなければ更新なしとしてnullを返却
    if (healthcareDataJson == null && weatherDataJson == null) {
        DEBUG_OUT.accept(TAG, "Not Updated!");
        return null;
    }

    // 更新用リクエスト用のJSON文字列をテンプレートから生成
    String result = JsonTemplate.createUpdateJson(emailAddress, iso8601DateValue,
            healthcareDataJson, weatherDataJson);
    DEBUG_OUT.accept(TAG, result);
    return result;
}
4.Flaskアプリで更新用データ(JSON)を受信し各テーブル用のデータを取得する

コードの一部のみ示します(テーブル更新処理は省略) ■■部分がデータを取り出す処理となります

(1)更新データPOST処理
@app.route(APP_ROOT + "/update", methods=["POST"])
def update():
    """
    健康管理データ(任意)または天候データ(任意)の更新
    """
    if app_logger_debug:
        app_logger.debug(request.path)

    # 更新データチェック
    personId, emailAddress, measurementDay, data = _check_postdata(request)

    # 健康管理データの更新
    _update_healthdata(personId, measurementDay, data)
    # 天候状態(気象データベース)の更新
    _update_weather(measurementDay, data)

    # ここまでエラーがなければOKレスポンス
    return make_register_success(emailAddress, measurementDay)


def _check_postdata(request):
    # リクエストヘッダーチェック
    if "application/json" not in request.headers["Content-Type"]:
        abort(BadRequest.code, _set_errormessage("450,Bad request Content-Type."))

    # 登録用データ取得
    data: dict = json.loads(request.data) # ■■ リクエストのPOSTデータをJSON化 ■■
    if app_logger_debug:
        app_logger.debug(data)

    # メールアドレスチェック
    emailAddress = data.get("emailAddress", None)
    if emailAddress is None:
        abort(BadRequest.code, _set_errormessage("462,Required EmailAddress."))

    # 測定日付チェック
    measurementDay = data.get("measurementDay", None)
    if measurementDay is None:
        abort(BadRequest.code, _set_errormessage("463,Required MeasurementDay."))

    # PersonテーブルにemailAddressが存在するか
    personId = _get_personid(emailAddress)
    if personId is None:
        abort(BadRequest.code, _set_errormessage("461,User is not found."))

    return personId, emailAddress, measurementDay, data # 結果をタプルで返却


def _update_healthdata(person_id: int, measurement_day: str, data: Dict) -> None:
    """
    健康管理データの更新処理
    :param person_id メールアドレスから取得したPersion.id
    :param measurement_day: 測定日
    :data 更新用データ
    """
    # 健康管理データコンテナ: 必須
    healthcare_data: Optional[Dict] = _has_dict_in_data("healthcareData", data)    # ■■
    if healthcare_data is None:
        abort(BadRequest.code, _set_errormessage("451,Required healthcareData!"))

    # 更新用データは更新されたテーブルのデータのみが存在する
    update_table_count: int = 0
    # (1) 睡眠管理
    sleep_man: Optional[Dict] = _has_dict_in_data("sleepManagement", healthcare_data) # ■■
    if app_logger_debug:
        app_logger.debug(f"sleepManagement: {sleep_man}")
    if sleep_man is not None:
        update_table_count += 1

    # (2) 血圧測定
    blood_press: Optional[Dict] = _has_dict_in_data("bloodPressure", healthcare_data) # ■■
    if app_logger_debug:
        app_logger.debug(f"bloodPressure: {blood_press}")
    if blood_press is not None:
        update_table_count += 1

    # (3) 夜中トイレ回数要因
    nocturia_factors: Optional[Dict] = _has_dict_in_data("nocturiaFactors", healthcare_data) # ■■
    if app_logger_debug:
        app_logger.debug(f"nocturiaFactors: {nocturia_factors}")
    if nocturia_factors is not None:
        update_table_count += 1

    # (4) 歩数
    walking_count: Optional[Dict] = _has_dict_in_data("walkingCount", healthcare_data) # ■■
    if app_logger_debug:
        app_logger.debug(f"walkingCount: {walking_count}")
    if walking_count is not None:
        update_table_count += 1

    # (5) 体温データ
    body_temper: Optional[Dict] = _has_dict_in_data("bodyTemperature", healthcare_data) # ■■
    if app_logger_debug:
        app_logger.debug(f"bodyTemperature: {body_temper}")
    if body_temper is not None:
        update_table_count += 1

    # 更新データ有無
    if update_table_count == 0:
        # 健康管理データの更新なし ※天候データのみの修正の場合があり得る
        return

    #...テーブルへの更新処理は省略...


def _update_weather(measurement_day: str, data: Dict) -> None:
    """
    天候状態の更新処理
    :param measurement_day: 測定日
    :data 更新用データ (任意)
    """
    try:
        # 天候データコンテナは必ずある
        weather_data: Dict = data["weatherData"]                    # ■■
        # 天候状態
        weather_condition: Dict = weather_data["weatherCondition"]  # ■■
        if app_logger_debug:
            app_logger.debug(f"weather_condition: {weather_condition}")
    except KeyError as err:
        app_logger.warning(err)
        return

    if weather_condition is None:
        # 更新データ無し
        return

    #...テーブルへの更新処理は省略...


# テーブル単位でキーがなくともエラーとしないための関数
def _has_dict_in_data(dict_key: str, data:Dict) -> Optional[Dict]:
    try:
        result: Dict = data[dict_key]
        return result
    except KeyError as err:
        # データ無し
        return None
メニューページへ
戻る
